2005 Suzuki GSX600F Specifications

Amazing Grace
Its nimble handling and sharp, sporty ride may leave you expecting to glide down the road unnoticed. Think again. With its sharp, distinctive body line and its smooth, agile performance, the 2005 Suzuki GSX600F is destined to catch the eyes of all passersby. Power and reliability.

Sure-footed handling and solid braking. Quality details tailored for satisfaction and convenience of ownership. A cool fusion of sports performance, rider and passenger comfort and fresh functional beauty. The 2005 Suzuki GSX600F is ready to slice the wind and steal the scene with its amazing grace.

600cc, 4-stroke, 4-cylinder, air-cooled with Suzuki Advanced Cooling System (SACS), DOHC, 16-valve engine delivers impressive blend of sporty performance and excellent low-to-mid rpm range power.
32mm (1.3in.) MIKUNI BSR carburetors with Throttle Position Sensor (TPS) further enhance mid rpm range output and quick throttle response.
Stainless steel 4-into-1 exhaust system carries catalyzer to further reduce emissions (for European and Californian markets only).
Digital ignition system for optimum ignition timing with maintenance-free battery.
Dynamic bodywork, featuring wind-tunnel-tested fairing, side air outlets, front fender and raked tailpiece contributes to performance and minimizes rider’s fatigue.
Body-mounted front turn signals and eye-catching taillight blend in with the overall aerodynamic design.
41mm-inner-tube front forks with 4-way adjustable rebound damping have 130mm (5.1in.) stroke for smooth ride.
Link-type rear suspension with shock absorber has 4-way adjustable rebound damping and 7-way preload settings.
Dual full-floating 290mm (11.4in.) front disc brakes and 240mm (9.4in.) rear disc brake provide strong, responsive and smoothly controlled stopping power. 120/70-17 front and 150/70-17 rear radial tires on the lightweight, cast aluminum-alloy wheels with wide, hollow 3-spoke rims.
Thickly-cushioned seat provides comfortable ride for both rider and passenger. Large 20.0-liter capacity fuel tank.
Convenient 4.5-liter underseat storage compartment.
Easy-to-read instrument panel with twin tripmeters, LCD odometer and clock.

2005 Suzuki GSX600F Specifications

Colors
Glass Splash White/Pearl Vigor Blue (CWH)
Solid Black (019)

Engine
Engine type: 4-stroke, 4-cylinder, air-cooled, DOHC
Engine displacement: 600 cm3
Bore x Stroke: 62.6 mm x 48.7 mm
Compression ratio: 11.3: 1
Transmission: 6-speed constant mesh
Starter system: Electric
Ignition type: Electronic ignition (Transistorized)

Dimensions
Overal length: 2,140 mm (84.3 in.)
Overal width: 755 mm (29.7 in.)
Overal height: 1,195 mm (47.0 in.)
Wheelbase: 1,470 mm (57.9 in.)
Ground clearance: 120 mm ( 4.7 in.)
Seat height: 785 mm (30.9 in.)

Suspensions
Suspension front: Telescopic, coil spring, oil damped, rebound damping force 4-way adjustable
Suspension rear: Link type, coil spring, oil damped spring preload 7-way adjustable, rebound damping force 4-way adjustable

Brakes
Brake front: Disc, twin
Brake rear: Disc

Tires
Tire front: 120/70 ZR17 M/C (58W), tubeless
Tire rear: 150/70 ZR17 M/C (69W), tubeless

Capacities
Fuel tank: 20.0 L (5.3 US gal.)
Dry mass: 209 kg (460 lbs.)

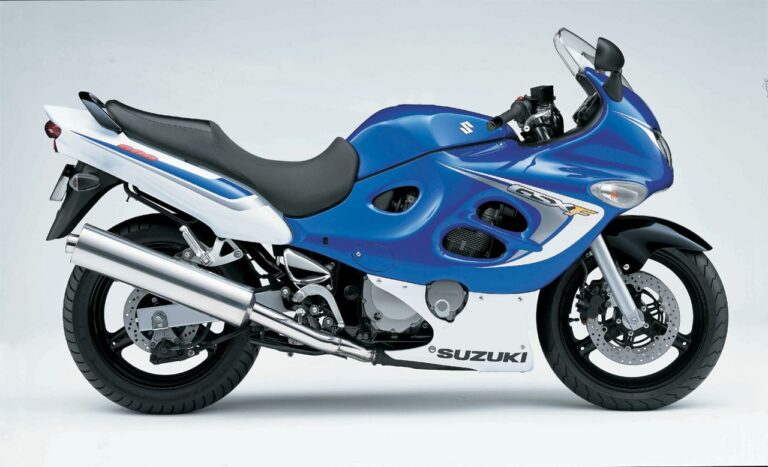

2005 Suzuki GSX600F Image Gallery
