In 1985, Suzuki unleashed the GSX-R750 to the world, which would become the foundation for today’s sportbikes. With unmatched engineering feats in light weight frames and power, it made its race track debut with a stunning victory at The Le Mans 24-hour World Endurance Championships!
Commemorating Suzuki’s 2015 return to MotoGP racing, the new GSX-R750 is dressed in Suzuki Racing Blue to express Suzuki’s spirit and passion for racing.
Suzuki has remained true to the GSX-R’s original concept with continued evolution for the GSX-R750. The GSX-R750 remains the best choice for riders who appreciate a state-of-the-art 750cc engine combined with the compactness of a GSX-R600cc Supersport. When you ride a GSX-R750 you experience the breathtaking combination of outstanding race winning heritage, engine performance, crisp handling, compact size and light weight. It’s a winning combination that allows any rider to experience the exhilarating rush any time, any place, anywhere.
Built to own the racetrack and let loose on the streets. Since 1985, the GSX-R has been continuously refined to deliver new levels of performance and agility. In 2013, this legacy of innovation continues with over 1 million legends made.
A 750cc, four-cylinder engine with a race-proven oversquare bore/stroke ratio provides exceptionally potent, high-revving performance.
Engine utilizes forged pistons, shot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes for outstanding engine performance.
Class leading Suzuki Dual Throttle Valve (SDTV) fuel injection system includes fine-spray 8-hole injectors, providing improved fuel atomization contributing to more complete combustion in the cylinder.
Advanced, MotoGP-developed transistorized ignition control circuit helps maintain more precise spark timing across the range of engine temperature.
Lightweight, durable forged pistons are designed with the Finite Element Method (FEM) and fatigue analysis technology and optimized camshaft profiles was developed using proven MotoGP racing technology.
A 4-into-1 stainless-steel exhaust system features a titanium muffler, which carries a Suzuki Exhaust Tuning (SET) valve. The system maximizes torque and improves throttle response, especially in the low-to-mid RPM range.
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road conditions and personal preference.
Suzuki Composite Electrochemical Material (SCEM) plated cylinders integrated into the upper crankcase helps reduce friction, improve heat transfer, increase durability and provide better ring seal.
A six-speed close-ratio transmission features vertically staggered shafts to reduce overall engine length.
Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.
Race-developed, lightweight 41mm Showa Big Piston front-Fork (BPF) delivers superb feedback and consistent performance.
A lightweight and compact twin-spar aluminum cradle frame is made of five cast sections and features a cast swingarm.
An electronically controlled steering damper provides lighter steering at lower speeds and more damping force at racetrack and highway speeds.
Front brakes feature fully floating 310mm discs and radial-mounted, four-piston Brembo monoblock calipers
A single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.
3-way adjustable footpegs, adjustable shift lever, and short fuel tank help with a comfortable riding position.
Compact, lightweight instrument cluster with a built-in lap timer/stopwatch and programmable engine rpm indicators.
Analog tachometer. LCD readouts include speedometer, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS and gear position indicators.
Suzuki GSX-R750 2015 Specifications
Metallic Triton Blue / Pearl Glacier White (YSF)
Glass Sparkle Black / Pearl Mira Red (A19)
Overall length: 2030 mm (79.9 in)
Overall width: 710 mm (28.0 in)
Overall height: 1135 mm (44.7 in)
Seat height: 810 mm (31.9 in)
Wheelbase: 1390 mm (54.7 in)
Fuel Tank: 17.0 L (4.5 US gal)
Curb Mass: 190 kg (419 lbs)
* Includes gasoline, lubricants, coolant, battery fluid and all standard equipment for normal use of the vehicle (tools included).
Engine Type: 4-stroke, 4-cylinder, liquid cooled, DOHC
Bore x stroke: 70.0 mm x 48.7 mm
Displacement: 750 cm3 (45.8 cu. in)
Ignition: Electronic CDI Digital
Transmission: 6-speed constant mesh with slipper clutch
Final Drive: RK525ROZ5Y, 116 links, Chain
Compression ratio: 12.5: 1
Ignition Type: Electronic ignition (Transistorized)
Starting system: Electric
Transmission: 6-speed constant mesh
Fuel System: Suzuki Fuel Injection
Lubrication: Wet sump
Front suspension: 41mm SHOWA inverted Big Piston Forks (BPF) with adjustable compression, rebound and spring preload
Rear suspension: Link type, SHOWA with fully adjustable compression (High & Low Speed), rebound and spring preload
Front brakes: Brembo radial-mount monoblock 4-Piston calipers, dual 310mm floating discs
Rear brake: Nissin single-piston caliper, 220mm disc
Front tire: 120/70ZR17M/C (58W), tubeless
Rear Tire: 180/55ZR17M/C (73W), tubeless

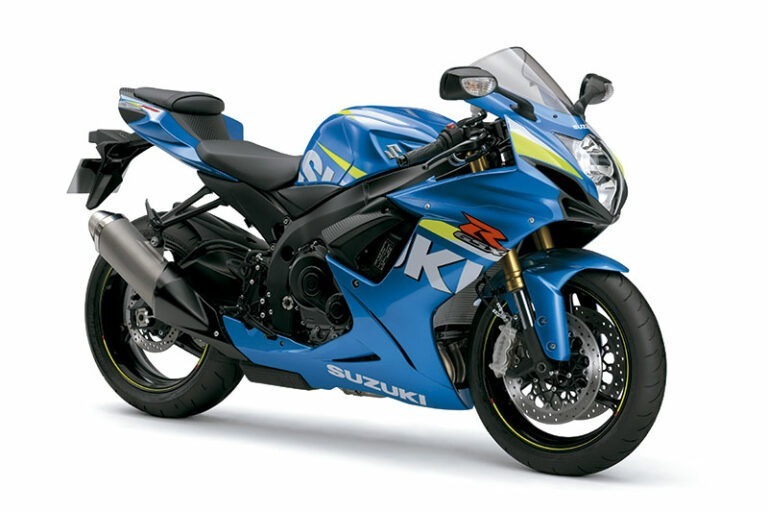

Suzuki GSX-R750 2015 Image Gallery
