Suzuki GSX-R750 1986 Specifications

bySuzuki Motorcycles
inSuzuki GSX-R750
Suzuki GSX-R750 1986 Specifications

Suzuki GSX-R750 1986 Specifications

0
SHARES
219
VIEWS
Share on FacebookShare on Twitter

The Suzuki GSX-R 750 1986 received a 25 mm longer swing arm to help calm the handling. Apart from a modified belly pan and upgraded headlamps there is very little difference between the 1985 and 1986 models.

This is the first year the model was introduced to the USA. Trying to improve the bikes handling, the 1986 model received a 25mm longer swing arm and radial tyres like the limited edition version GSX-R750R model plus a modified lower fairing. The distinct dual headlights were upgraded to 65/50 watts.

Standard radial tires as the previous version of the Suzuki GSX-R 750 R Limited (Racing). Apart from that, the model remained basically unchanged since 1985 except for a modified lower fairing.

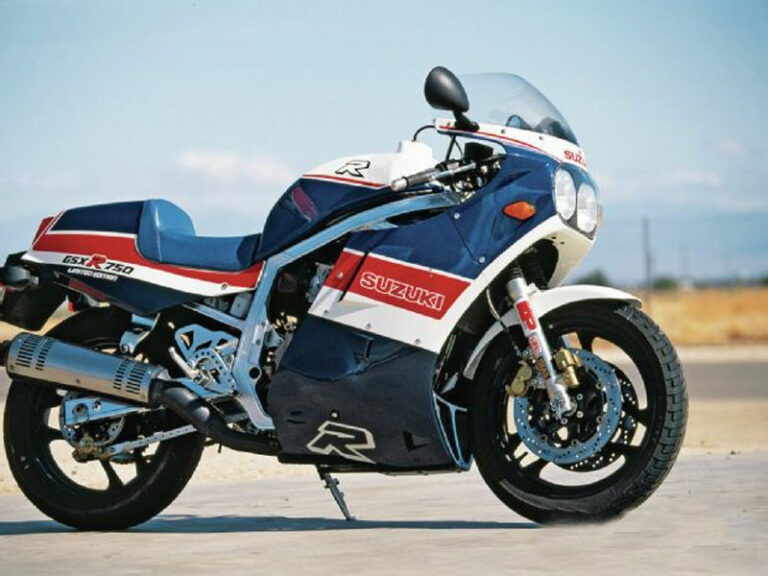

The street-legal limited edition (only 500 made) Suzuki GSX-R 750 R model was introduced for 1986. The basic specifications of the bike were the same as for the standard model (except for the seat height) but the the ”RR” model offered some improvement to an already great bike.

Differences between the Suzuki GSX-R 750 1986 and Suzuki GSX-R 750 R 1986 were: Gun-coat engine finish, gold-plated chain, blue-coated wheels and two sets of racing numbers. The Suzuki GSX-R 750 1986 offered a new electrically activated front suspension system (NEAS), 310 mm floating front brake discs, steering damper, racing type adjustable clutch-lever, dry clutch, single racing seat, remote rear damper reservoir, amber halogen head lights and more.

Suzuki GSX-R750 1986 Specifications

Suzuki year code
1986: G

Colours
Super White / Champion Blue (7GF)
Black / Pearl Twinkle Red (7JK)
Suzuki GSX-R 750 R 1986 Color
Marble Fisher Blue / Solid Super White (8JZ)

Dimensions and curb weight
Overall length: 2,120 mm (83.5 in)
Overall width: 745 mm (29.3 in)
Overall height: 1,215 mm (47.8 in)
Seat height: 795 mm (31.3 in)
Wheelbase: 1,455 mm (57.3 in)
Ground clearance: 125 mm (4.9 in)
Empty weight: 176 kg (388 lbs)

Engine
Engine Type: 4 stroke, air and oil cooled, DOHC
Number of cylinders: 4 cylinders
Calibre: 70.0 mm (2.756 in)
Stroke: 48.7 mm (1.917 in)
Displacement: 749 cc (45.7 cu in.)
Torque: 64 Nm / 8,000 rpm.
Power: 106 hp (77.4 kW) / 10,500 rpm
Compression: 9.8: 1
Carburetor: Mikuni 29mm 4x
Air filter: Paper element
Starting system: Electric
Lubrication system: Wet Carter

Drivetrain
Clutch: Wet, multiplate oil
Transmission: 6-speed constant Gear
Gearshift pattern: 1 reduction, 5x
Primary reduction ratio: 1.744 (75/43)
Gear Ratio:
First: 2,866 (43/15)
2nd: 2,058 (35/17)
3rd: 1,650 (33/20)
4th: 1,428 (30/21)
5th: 1,260 (29/23)
High: 1,120 (28/25)
Final reduction ratio: 2.800 (42/15)
Drive chain: RK TAKASAGO 50GSVZ1 or DAIDO DID 50VA7, 108 links

Chassis
Front suspension: Telescopic, coil springs, adjustable preload, damping oil, 4 and 4 compression settings rebound damping adjustments.
Rear suspension: articulated type, coil, adjustable spring preload, 4 positions, Suzuki “Full Floater” system.
Fork travel: 120 mm (4.7 in)
Rear wheel travel: 136 mm (5.35 in)
Steering angle: 30 °
Caster angle: 65º 30 ‘
Filmed: 94 mm (3.7 in)
Turning radius: 3.1 m (10.2 ft)
Front brakes: Double disc brake
Rear brake: single disc brake
Front Tire Size: 110/80-VR18 V240 radial
Rear Tire Size: 140/70-VR18 V240 radial

Electrical Equipment
Ignition Type: Electronic ignition (Transistorized)
Ignition timing: 7th BTDC at 1500 rpm
Spark plug: NGK CR10EK
Battery: 12 V 36.0 kC (10 Ah) / 10 HR
Generator: Three-phase AC generator
Main fuse: 30A
Fuse: 15/15/15/10/10 A
Headlight: 12 V 60 / 50W x 2
Flashing light 12 V 21 W
Light: 12 V 5 W
Brake / Rear: 12 W x 2 5/21 V
Speedometer Light: 12V 1.7W
Light Tachometer: 12V 1.7W x 2
Neutral indicator light: 14V 3W
Indicator light beam: 14V 3W
Indicator light turn signal: 14V 3W
Oil pressure indicator light: 14V 3W

Capabilities
Fuel tank, including reserve: 21 l (5.5 US / Imp gal)
Engine oil:

  • Oil change: 3,000 ml (3.2 / 2.6 US / Imp qt)
  • With filter change: 3.300 ml (3.5 / 2.9 US / Imp qt)

Repair: 3.900 ml (4.1 / 3.4 US / Imp qt)
Fork oil 419 ml (14.2 / 14.8 US / Imp oz)
Refrigerant: 2,550 ml (2.7 / 2.2 US / Imp qt)
