Suzuki GSX-R1000 2009 Specifications

Home Sportbike Suzuki GSX-R Suzuki GSX-R1000
1k
SHARES
5.4k
VIEWS
Share on FacebookShare on Twitter

An Invitation To Own The Racetrack
All-new Suzuki GSX-R1000 2009. With a more powerful, cleaner-running engine. A more nimble chassis and more responsive suspension. In a more compact and lighter package. Wrapped with an edgy new look. All delivering a renewed invitation for riders worldwide: Own The Racetrack.

Suzuki GSX-R1000 2009 Features
999cm3 4-cylinder powerplant, designed lighter and 59.7mm shorter from front to rear, brings enhanced throttle response across the entire rpm range and high potential for racetrack performance.
The new compact engine enabled 10mm shorter wheelbase and 32mm longer swingarm to improve racetrack performance. New, more over-square bore x stroke of 74.5mm x 57.3mm (changed from 73.4mm x 59.0mm) gives the engine better overall tuning potential. The compression ratio is now 12.8:1, changed from 12.5:1.
The engine employs enlarged titanium valves in diameter, forged pistons, shot-peened conrods.
Suzuki Composite Electrochemical Material (SCEM)-plated cylinders integrated into the crankcase, reducing friction and improving heat transfer, durability and ring seal. 12-hole fuel injectors produce a finer fuel mist for more complete combustion, reducing fuel consumption and exhaust emissions.
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of three performance settings to suit riding conditions and personal tastes. Now the switch is relocated on the left handlebar control module. Iridium spark plugs produce a stronger spark for better combustion.
Large, efficient radiator with a trapezoidal shape developed on factory team racebikes and a trapezoidal engine oil cooler both help reduce drag.
Cable-operated back-torque-limiting clutch makes for efficient clutch operation with superb feel.
Unique Suzuki Advanced Exhaust System (SAES) uses an under-engine chamber and low-slung, large-volume MotoGP-inspired titanium mufflers.
Twin-spar cradle frame made of five cast sections, mated with an arched swingarm made of three castings and one-piece die-cast rear subframe.
Big Piston Frontforks (BPF) with an endurance-race-proven design deliver superb feedback and responsive, stable operation, and are lightweight.
Rear shock absorber features adjustable rebound damping, spring preload, and both high-speed and low-speed compression damping.

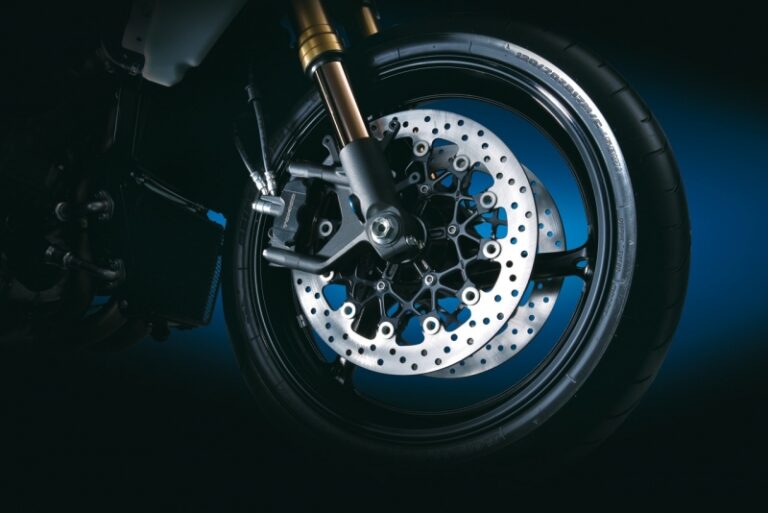

Front brakes with fully floating 310mm discs and rigid, lightweight race-proven monoblock aluminum casting alloy radial-mount calipers.
The edgy and clean Suzuki GSX-R1000 2009 styling incorporates fairing and bodywork details aimed at reducing turbulence and drag.
Attention to rider comfort includes a carefully shaped seat and adjustable footpegs.
Tailsection cover included for solo rides or track days. Sculpted fuel tank is lighter, while capacity remains 17.5 liters (4.6 US gal).
New look multi-reflector headlight with vertically stacked high and low-beam halogen bulbs centered between position lights on each side.
For Europe, the position lights each have layered lenses with blue coloring on the inside lens for an even sportier look.
Front and rear turn signals feature clear lenses over amber bulbs.
Instruments include a silver-ringed analog tachometer with LCD speedometer. LCD readouts include odometer, dual trip meters, reserve trip meter, clock, coolant temperature/oil pressure warning indicator, gear position indicator, lap timer/stopwatch, S-DMS setting indicator and bar-graph indicating the instrument lighting level, or brightness.

Suzuki GSX-R1000 2009 Specifications

Colors
Metallic Triton Blue / Glass Splash White (GLR)
Solid Black / Metallic Mat Black No.2 (CRU)
Glass Splash White / Metallic Mistic Silver (FGF)
Candy Dark Cherry Red / Solid Black (GRD)

Dimensions and curb weight
Overall length: 2,045 mm (80.5 in)
Overall width: 720 mm (28.3 in)
Overall height: 1,130 mm (44.5 in)
Wheelbase: 1,405 mm (55.3 in)
Ground clearance: 130 mm (5.1 in)
Seat height: 810 mm (31.9 in)
Curb mass (weight): 203kg. (448 lbs)

Engine
Engine Type: 4 stroke, liquid cooled, DOHC.
Number of cylinders: 4.
Bore: 74.5 mm (2.933 in)
Stroke: 57.3 mm (2.256 in)
Displacement: 999 cm3 (61.0 cu In.)
Compression ratio: 12.8: 1.
Fuel System: Fuel delivery method.
Air filter: Paper element.
Starter system: Electric.
Lubrication system: Wet collector.
Idle speed: 1150 ± 100 rpm

Drivetrain
Clutch: Wet, multiplate oil.
Transmission: 6-speed constant mesh.
Gearshift pattern: 1 reduction, 5 increase.
Primary reduction ratio: 1.617 (76/47)
Gear Ratio:
First: 2,562 (41/16)
2nd: 2,052 (39/19)
3rd: 1,714 (36/21)
4th: 1,500 (36/24)
5th: 1.360 (34/25)
High: 1,269 (33/26)
Final reduction ratio: 2.470 (42/17)
Drive chain: DID50VAZ, 114 links.

Chassis
Frame type: Twin-spar (aluminum alloy)
Front suspension: Inverted telescopic, coil spring, spring preload fully adjustable, rebound and compression damping force fully adjustable.
Rear suspension: Link type, oil damped, coil spring, spring preload fully adjustable, rebound and compression damping force 2-way fully adjustable.
Carrera Front fork: 125 mm (4.9 in)
Rear wheel travel: 130 mm (5.1 in)
Steering angle: 23º 50′
Tilt the front axle: 27 (right and left)
Filmed: 98 mm.
Turning radius: 3.4 m (11.2 ft)
Rake/Trail: 23.8 degrees / 98.3 mm (3.9 in)
Front brakes: Radial mount, 4-piston calipers. 310 mm disc, twin.
Rear brake: 1-piston caliper, 220 mm disc
Front wheel: 17 M/C x MT3.50, cast aluminum alloy
Rear wheel: 17 M/C x MT6.00, cast aluminum alloy
Front Tire: 120/70ZR17M/C (58 W), tubeless.
Rear Tire: 190/50ZR17M/C (73 W), tubeless.

Electrical Equipment
Ignition Type: Electronic ignition (Transistorized).
Ignition timing: 4th BTDC at 1150 rpm
Spark plug: NGK CR9EIA-9 or DENSO IU27D
Battery: 12 V 36.0 kC (10 Ah) / 10 HR
Generator: Three-phase AC generator
Main fuse: 30A Fuse: 30/10/10/15/10/10/15 A
Headlight: High beam 12 V 65 W (H9)
Low light: 12 V 55 W (H11)
Flashing light: 12 V 21 W
Number plate light: 12 V 5 W
Brake / rear: LED
Light: 12 V 5 W
Speedometer light: LED
Neutral indicator light: LED
Indicator light beam: LED
Indicator light turn signal: LED
Indicator light fuel level: LED
Light oil pressure warning: LED

Capabilities
Fuel tank, including reserve: 17.5 L (4.6 US gal)
Engine oil:
oil change: 2,800 ml (3.0 / 2.5 US / Imp qt)
with filter change: 3.300 ml (3.5 / 3.0 US / Imp qt)
Repair: 3.600 ml (3.8 / 3.2 US / Imp qt)
Refrigerant: 2,750 ml (2.8 / 2.4 US / Imp qt)
